HHP

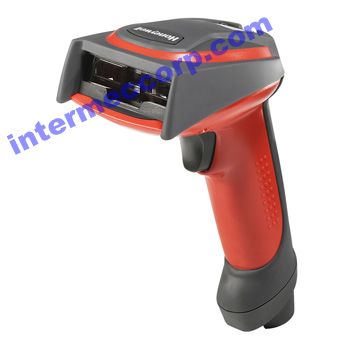

3820i工业无线一维扫描枪
HHP 3820i设置手册下载
3820i提供业内最佳阅读距离和无与伦比的阅读低质量条码的能力,还拥有业界领先的耐用性,在恶劣工作环境下同样表现出色,另外它还具备了蓝牙无线连接的功能。
坚固耐用：霍尼韦尔设计的外壳坚固,无可移动部件的扫描枪可以承受50多次从2.0m跌落到水泥地的冲击。
无线连接：蓝牙 v2.0的配置让3820i具备了远离基座10m的工作范围,降低其他无线系统的干扰。
出色的一维条码扫描表现：采用二维影像技术,能够读取所有一维条码-即使是已损坏或者是打印质量较差的条码。
电池：持久而高性能的锂电池每次充满后在没有特殊要求的情况下可以扫描50,000次,同时可以现场更换。
FIPS 140-2 Certified Encryption 选项： 通过Federal Information Processing Standards (FIPS) 安全无线数据通讯传输认证, 达到先进的美国政府安全标准,为任何涉及敏感数据的应用环境提供安全性。
多插槽电池充电器： 充满4个锂电池的时间大约为4.5小时,最大限度地支持设备在任何应用环境下的正常运行时间。
Specifications
Performance
Illumination: 630 NM Visible Red LED
Receiving Device: 3648 element linear imager
Reading Distance: From 1 in. (2.5 cm) to 24 in. (61 cm) on medium density codes
Reading Width: 7.5 mil code: 7 in. (18 cm) from nose, 6.6 in. (17 cm) wide
13 mil code: 16.5 in. (42 cm) from nose, 10 in. (25 cm) wide
Resolution: 5 mil. at 5 in. (13 cm) distance
Skew Angle: +65
Pitch Angle: +65
Minimum Symbol Contrast: 20%
Scan Rate: Up to 270 scans per second
Decode Rate: 270 decodes per second
Wireless Technology
Frequency: 2.4 to 2.4835 GHz (ISM Band) Frequency-Hopping Bluetooth PRD 2.0 plus EDR
Range: 33 ft. (10 m) typical
Data Rates: 720 KBps to 3 MBps
Security: FIPS 140-2 optional
Battery (Lithium Ion)
Capacity: 2,000 mAh (typical)
Number of Scans: 57,000
Expected Hours of Operation: 16 hours
Charge Time with 9 VDC External Power Supply: 4 hours for full charge from full discharge
Symbologies: China Post, Codabar, Codablock F, Code 2 of 5, Code 11, Code 16K, Code 39, Code 32 Pharmaceutical (PARAF), Code 49,Code 128, EAN/JAN, IATA Code 2 of 5, Interleaved 2 of 5, Korea Post, Matrix 2 of 5, Coupon Code, MSI, Plessey Code,PosiCode, GS1 DataBar, Telepen, Trioptic, UPC-A, UPC-E, and ISBT 128 Concatenation (requires a paid license). 2005 Sunrise/GTIN compliant.
Interfaces:
All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, USB, TTL level RS-232, wand emulation mode, TTL level Serial Wedge, and IBM 46XX retail terminals.
Mechanical/Electrical
Weight: 9.6 oz. (272 g)
Height: 6.5 in. (16.5 cm)
Power Requirements
Input Voltage: 3.7 V internal battery
Environmental
Sealing: P 54 (Water and Dust Resistant)
Operating Temperature: to 122 F (-10 to 50 C)
Storage Temperature: to 158 F (-40 to 70 C)
Humidity: up to 95%, non condensing
Mechanical Shock: Functional after 50 drops from 6.5 ft. (2.0 m)
Ambient Illumination: 0-76,000 lux
ESD Protection:
Functional after 15 kV discharge
Agency:International: CB scheme to IEC60950-1 & IEC60825-1 Class 1 LED (3820i). Bluetooth Quali? ed Design listed QDID: B013520. USA: FCC Part 15 subpart C. UL listed to 60950-1. Canada: RSS-210. cUL listed to CSA C22.2 No. 60950-1-03. Europe: CE 1999/5/EC R&TTE Directive to EN55022, EN55024, EN61000-3-2, EN61000-3-3. 2006/95/EC Low Voltage Directive (2020). GS Mark: GS marked for I.T.E. safety. Australia/NZ: C-Tick mark.
Warranty:3 years (Note: battery warranty is 1 year)
|
